Background

Process injection or code injection is a technique in which you copy and execute arbitrary code to a target process. It is often used in Offensive Security to execute tasks under the context of another legitimate process on the system.

Before this blog my Mythic C2 agent, Xenon, only implemented process injection for executing .NET assemblies in-memory, but I planned on using it for post-ex commands going forward.

Since malware has used process injection for decades, this is going to be one of the most suspicious things Xenon will need to do. It’s an easy detection/signature point, especially for an open-source tool like this one. That is why I wanted to support user-defined process injection methods.

Obviously, users could always edit the agent’s source code directly and change the default process injection method, but I wanted to tackle the challenge of supporting previously written kits.

Something like Cobalt Strike’s Process Injection Kit.

Why Inject?

Let’s just get this part out of the way.

So why do we want to do process injection in the first place? The original thinking behind doing remote process injection was to “protect” the main beaconing process from crashing and disperse memory artifacts away from its own process.

Without process injection

• You have a C2 beacon running in a.exe.
• The operator runs a mimikatz task.
• The agent tries to execute it, but it crashes or gets detected.
• Result: a.exe dies and you lose your entire foothold.

With process injection

• The beacon is still running in a.exe.
• The operator runs a mimikatz task.
• Instead of executing inside itself, a.exe injects mimikatz’s position-independent code into legit.exe.
• If legit.exe crashes, the task fails but a.exe is still alive and beaconing.

Cobalt Strike - Process Injection Kit

The Process Injection Kit in CS is a feature that implements two “hook” functions for post-exploitation commands that use post-ex DLLs.

Hooks allow Aggressor Script to intercept and change Cobalt Strike behavior.

The two hooks in CS are PROCESS_INJECT_SPAWN and PROCESS_INJECT_EXPLICIT.

PROCESS_INJECT_SPAWN - spawns a temporary process and then injects into it.

PROCESS_INJECT_EXPLICIT - injects into an already running process.

If using the process injection kit, these hook functions override the default process injection technique. It basically allows the operator to define custom injection functionality to avoid detections/signatures.

Spawn Injection Commands

In Cobalt Strike, specific commands use the fork & run technique. The main purpose for this is to ‘protect’ the beacon from crashing or detection. Although in today’s world I think fork & run is probably going to hurt you on detections.

Commands that support the PROCESS_INJECT_SPAWN hook in 4.5

Explicit Injection Commands

Explicit injection doesn’t spawn a temporary process, but injects into an already existing process on the target host.

Commands that support the PROCESS_INJECT_EXPLICIT hook in 4.5

Mythic Implementation

Disclaimer

It should be stated that in modern C2 implants there has been a big shift away from the fork & run technique to in-process execution. Most modern implants rely heavily on in-process execution of BOF files. This is because fork & run is “louder” from an events perspective, because it involves remote process injection which has become increasingly more detectable.

So why did I bother reimplementing Process Injection Kit at all?

Really for these purposes:

• Learn about it’s implementation in Cobalt Strike.
• Provide the option to use your own process injection techniques without modifying Xenon’s code base.

BOF files do have some key advantages over fork & run:

• A plethora of open-source examples
• Rapid development
• Small memory footprint
• In-process execution

Default Injection

Xenon’s default injection method is a basic APC injection, a very well signatured behavior that will most likely be flagged by AV engines (but maybe not ).

Register Kit

To start, I introduced a new Mythic command, register_process_inject_kit, to the Xenon agent. It allows you to upload a custom process injection kit into Xenon.

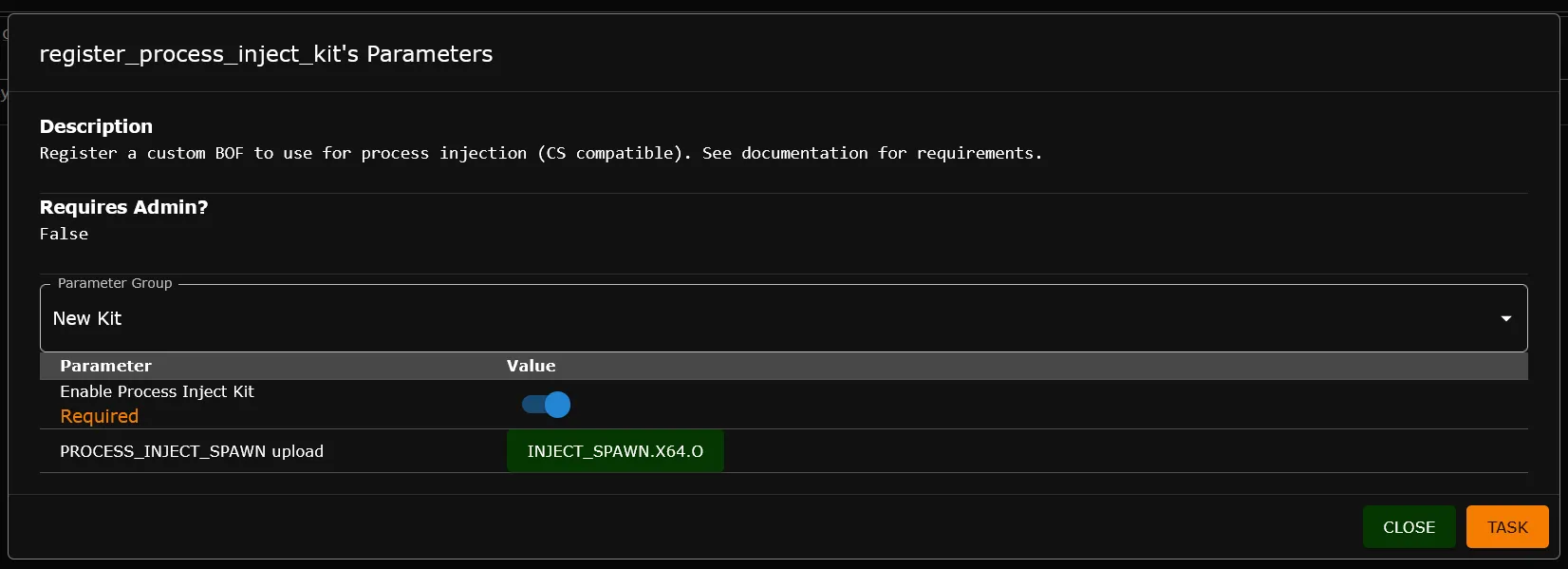

Process Injection Kit's are implemented as Beacon Object Files (BOFs) and uploaded through the modal.

Currently only PROCESS_INJECT_SPAWN behavior is supported which spawns a new sacrificial process to perform process injection.

For now, it takes two arguments --enabled and --inject_spawn.

• --enabled - Enables ALL Xenon payloads to use the custom injection method.
• --inject_spawn - Saves a BOF file as the new injection kit.

Once your kit is registered all supported commands will use the BOF to perform injection.

Commands

Currently these are the only commands that will be overridden by the process injection kit.

• execute_assembly
• mimikatz

The Pipe Problem

At this point in the implementation I found myself stuck in a pickle.

1. User uploads their BOF (kit) with register_process_inject_kit
2. User runs a fork & run command
3. Server sends command to agent
4. Agent executes kit to inject shellcode into remote process

How do we get the output from a remote process?

Previously this was easy because we controlled the code that spawned the remote process and could use anonymous pipes to get the process’s output. But now the user controls the spawning functionality in their BOF.

I thought, well, their BOF can use the internal BeaconAPIs I’ve defined like BeaconSpawnTemporaryProcess , so should I just modify that to use an anonymous pipe?

But then the calling code (their code) would need to pass a handle to the function then check it for output.

I could modify the function to use a named pipe, but then what if they don’t use the BeaconAPIs to spawn the sacrificial process? Then they wouldn’t get any output still.

Unfortunately this would make my implementation incompatible with people’s already existing Process Injection Kits.

More shellcoding…

To avoid this I did something wacky, that turned out to be similar to what Cobalt Strike did.

I created a PIC stub which gets prepended to all post-ex PIC that does the following:

1. Walks the Process Environment Block (PEB) to find the addresses for CreateFileA and SetStdHandle
2. Calls CreateFileA to create a named pipe with a known string
3. Calls SetStdHandle to set the stdout and stderr in the current process to the named pipe
4. Jumps to the next block of shellcode

Now when the post-ex PIC executes in that process it will write all output to our named pipe. In our main beacon process we can just read data from that named pipe until there’s none left.

xenon → injects stub+shellcode → stub sets output to \\\\.\\pipe\\something→ shellcode executes

I discovered this was similar to how Cobalt Strike implements output retrieval from remote processes. The difference is they do not use donut-shellcode, but instead a custom PIC DLL reflective loader (DRL) that sets the output in the current process to a named pipe.

beacon → injects DRL+DLL→ DRL sets output to \\\\.\\pipe\\something → DLL executes

Development

If you want to write your own process injection kit refer to Cobalt Strike’s documentation.

Here is a simple example:

#include <windows.h>
#include "beacon.h"

/* is this an x64 BOF */
BOOL is_x64() {
#if defined _M_X64
   return TRUE;
#elif defined _M_IX86
   return FALSE;
#endif
}

/* See gox86 and gox64 entry points */
void go(char * args, int alen, BOOL x86) {
   STARTUPINFOA        si;
   PROCESS_INFORMATION pi;
   datap               parser;
   short               ignoreToken;
   char *              dllPtr;
   int                 dllLen;

   /* Warn about crossing to another architecture. */
   if (!is_x64() && x86 == FALSE) {
      BeaconPrintf(CALLBACK_ERROR, "Warning: inject from x86 -> x64");
   }
   if (is_x64() && x86 == TRUE) {
      BeaconPrintf(CALLBACK_ERROR, "Warning: inject from x64 -> x86");
   }

   /* Extract the arguments */
   BeaconDataParse(&parser, args, alen);
   ignoreToken = BeaconDataShort(&parser);
   dllPtr = BeaconDataExtract(&parser, &dllLen);

   /* zero out these data structures */
   __stosb((void *)&si, 0, sizeof(STARTUPINFO));
   __stosb((void *)&pi, 0, sizeof(PROCESS_INFORMATION));

   /* setup the other values in our startup info structure */
   si.dwFlags = STARTF_USESHOWWINDOW;
   si.wShowWindow = SW_HIDE;
   si.cb = sizeof(STARTUPINFO);

   /* Ready to go: spawn, inject and cleanup */
   if (!BeaconSpawnTemporaryProcess(x86, ignoreToken, &si, &pi)) {
      BeaconPrintf(CALLBACK_ERROR, "Unable to spawn %s temporary process.", x86 ? "x86" : "x64");
      return;
   }
   BeaconInjectTemporaryProcess(&pi, dllPtr, dllLen, 0, NULL, 0);
   BeaconCleanupProcess(&pi);
}

void gox86(char * args, int alen) {
   go(args, alen, TRUE);
}

void gox64(char * args, int alen) {
   go(args, alen, FALSE);
}

IMPORTANT - The BOF injection kit must parse two arguments passed from Mythic, regardless if it uses them:

ignoreToken - Boolean value that Xenon doesn’t use yet, but still needs to be there.

dllPtr - A pointer to the beginning of the shellcode being executed.

The example code above is essentially the same behavior as Xenon's default process injection method. It can be easily modified to change the injection behavior to something custom, and that's where the advantage is.

Using register_process_inject_kit the injection behavior can be changed at any point in the running payload without compiling a new payload.

You can compile the example BOF with the following:

x86_64-w64-mingw32-gcc -o inject_spawn.x64.o -c inject_spawn.c

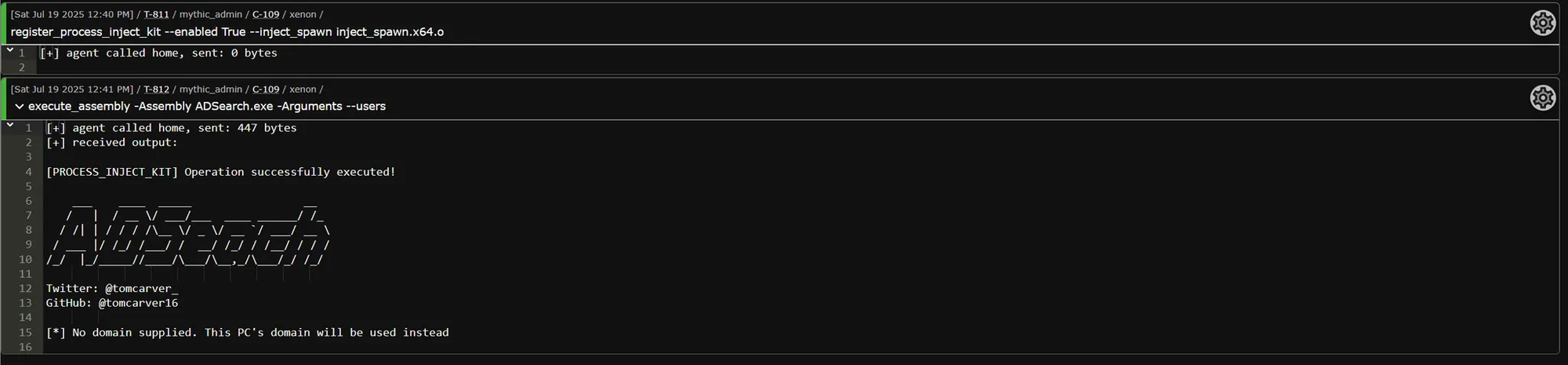

Then register the new kit with the register_process_inject_kit command to the Mythic server.

Now all supported commands will use your new process injection behavior!

Examples

If your like me, you might just want to use some publicly available kits out there.

Here are some real-world examples of modified injection kits:

• InjectKit - Indirect syscalls via the Tartarus Gate method.
• secinject - Section Mapping Process Injection (secinject): Cobalt Strike BOF
• CB_process_Inject - A simple process injection kit for cobalt strike based on syscalls

Wrapping Up

I mostly went through this process, because I thought the idea of swapping out process injection methods on the fly was cool.

Practically speaking I would probably opt for in-process BOF execution on a real engagement.
